Types of Electric Motors for Electric Bikes
Before you buy an electric bike, one of the most important things you’ll have to do is choose an electric motor. E-bikes are becoming more and more popular, so it’s helpful to know about the different kinds of motors that are out there. Different types of motors have different features, pros, and cons. By learning about these differences, you can pick the motor that fits your ride style and needs the best. There’s an electric motor for everyone, whether you want to use your e-bike for commuting, off-road activities, or just riding for fun.

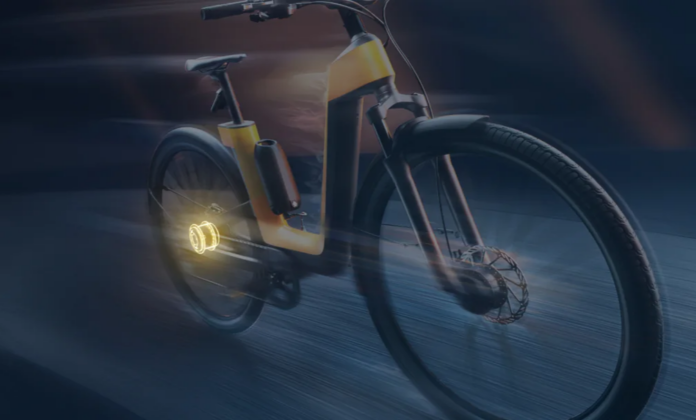

Hub Motors: Compact and Powerful Electric Bike Motors
Electric bikes often use hub motors because they are easy to set up and work well. There is a motor built right into the hub of either the front or rear wheel. The motor spins the wheel, which moves the bike forward, when power is given. Because there is no need for complicated gearing or chains with this direct drive system, hub motors are a safe and low-maintenance choice.
The Advantages of Hub Motors
High Torque at Low Speeds
One great thing about hub motors is that they can make a lot of power even when they’re moving slowly. Their ability to do this makes them perfect for riders who often have to deal with stop-and-go traffic or need to speed up quickly from a stop. There is instant power delivery, which makes riding smooth and responsive, especially in cities.
Compact and Lightweight Design
Another good thing about hub motors is that they are small and light. With the motor built right into the wheel hub, makers can make e-bikes that look very sleek and modern. This design also helps the bike stay light, which makes it easy to move around and carry when needed.
Potential Drawbacks to Consider
Increased Mechanical Wear
Hub motors can put more stress on the wheel and its parts than other types of motors because they have a straight drive system. Over time, this extra wear on the parts may make upkeep problems more likely. These problems can be lessened with regular checks and good care, but it’s important to know that you might need to do more work.
Noise Levels
Some hub motors, especially those that don’t have gears, can make more noise than other types of e-bike motors. You might be able to hear the humming or whirring sound, especially when the motor is running fast or under a lot of stress. This isn’t a big deal for most riders, but it is something to think about if you want a quiet ride.
Ideal Applications for Hub Motors
Excelling in Urban Commuting
Hub motors shine in urban commuting scenarios. Their compact size and powerful performance make them perfect for navigating busy city streets, conquering short hills, and handling frequent starts and stops. Commuters who value simplicity and reliability often find hub motors to be an excellent fit for their daily rides.
Enhancing Folding Bikes and Smaller E-Bikes
The space-saving design of hub motors makes them an ideal choice for folding bikes and smaller e-bikes. By keeping the motor contained within the wheel hub, manufacturers can create compact and portable e-bikes that are easy to store and transport. This combination of convenience and electric assistance has made hub motor-equipped folding bikes increasingly popular among urban dwellers and travelers.
Direct Drive Hub Motors: Simple, Durable, and Regenerative Braking Enabled
How Direct Drive Hub Motors Work
One type of hub motor that stands out for its simplicity is the direct drive hub motor. They don’t have any gears inside like geared hub motors do. Since there is a straight link between the motor and the wheel, both spin at the same speed. Direct drive motors are strong and last a long time because they have a simple design.
Advantages of Direct Drive Hub Motors
Durability and Low Maintenance
Since direct drive hub motors don’t have as many moving parts, they last longer and need less upkeep. Since these motors don’t have any gears that need to be replaced or worn out, they can last a long time and work reliably. You can choose them if you want a motor that doesn’t need a lot of maintenance.
Smooth Power Delivery
Because they are so simple, direct drive hub motors give off power that is smooth and steady. Since the motor and wheel are directly connected, there is no need for a complicated gearing system. This makes the ride smooth and fast. You can really feel this smooth power when you’re going at a steady speed or on flat ground.
Drawbacks to Keep in Mind
Heavier Construction Compared to Geared Hub Motors
Direct drive hub motors are usually heavier than geared hub motors because they have larger magnets and a more robust construction. This extra weight can affect how the e-bike handles and accelerates, especially compared to lighter motors. However, the added weight is less noticeable when riding on flat ground or at a steady pace.
Reduced Efficiency on Steep Hills
While direct drive hub motors work well on flat and slightly hilly terrain, they may not be as efficient on steep hills. Without gears, the motor has to work harder to overcome the pull of gravity, which can use more power and make the bike climb slower. Riders who often encounter steep hills might want to consider other motor options or e-bikes with lower gear ratios.
Good Uses for Direct Drive Hub Motors
Commuting Distances Over 10 Miles
The durability and low maintenance needs of direct drive hub motors make them a great option for commuting distances over 10 miles (16 km) one way. Riders who cover such distances daily will appreciate the motor’s reliability and the confidence that comes with having fewer parts that can break down. The smooth and consistent power also makes for a comfortable ride, even on longer commutes.
Riding on Mostly Flat Ground
Direct drive hub motors are especially well-suited for riding on mostly flat terrain. In these conditions, the motor is very efficient, providing smooth and consistent power without the need for complex gearing. Riders who mainly travel on flat city streets or gentle country roads will find direct drive hub motors to be a reliable and efficient choice for their e-bike.
Mid-Drive Motors: Balanced and Efficient for Challenging Terrain
How Mid-Drive Motors Work
Mid-drive motors, also called center-drive or crank-drive motors, are located in the middle of the e-bike, usually near the bottom bracket. Unlike hub motors, mid-drive motors use the bike’s chain and gears to transfer power to the rear wheel. This location lets the motor use the bike’s gears, which makes the ride more efficient and adaptable.
Advantages of Mid-Drive Motors
Better Balance and Handling
One of the main benefits of mid-drive motors is that they distribute weight more evenly. By putting the motor near the center of the bike, the weight is balanced between the front and rear wheels. This improves the overall stability and handling of the e-bike, making it easier to control, especially on uneven surfaces or tight turns.
Better Climbing Performance
Mid-drive motors are great for situations that need extra torque, like climbing steep hills or riding on rough terrain. By using the bike’s gears, mid-drive motors can optimize power based on what the rider needs. When climbing, the rider can shift to a lower gear, letting the motor spin faster and generate more torque. This efficient use of gearing makes mid-drive motors a good choice for challenging climbs.
Potential Drawbacks of Mid-Drive Motors
Higher Cost and Complexity
One potential drawback of mid-drive motors is that they cost more than hub motors. The complex installation process, which often requires specific frame designs and compatible parts, adds to the cost. Additionally, mid-drive motors usually need more maintenance because they put more strain on the drivetrain parts, like the chain, cassette, and derailleur.
More Drivetrain Wear
Since mid-drive motors use the bike’s drivetrain to transfer power, they can put more stress on these parts. The extra torque and power on the chain and gears can cause them to wear out faster, especially if the rider often uses high assist levels or rides in challenging conditions. Regular maintenance, like keeping the chain lubricated and replacing it when needed, may be necessary to keep the drivetrain in good shape.
Ideal Uses for Mid-Drive Motors
Mountain Biking and Off-Road Adventures
Mid-drive motors are a popular choice for mountain bikers and off-road riders. The better balance and efficient power delivery make them well-suited for navigating tough trails, climbing steep hills, and keeping traction on loose or uneven surfaces. The ability to adjust power output through gearing lets riders tackle a wide range of terrain with confidence and control.
Routes with Big Elevation Changes
For riders who often encounter routes with big elevation changes, mid-drive motors offer a clear advantage. The efficient use of gearing ratios lets the motor adapt to the changing terrain, providing the right amount of power and torque when needed. Whether climbing long, steep hills or navigating up-and-down terrain, mid-drive motors help riders maintain a steady and comfortable pace throughout the ride.
Friction Drive Motors: Simple and Easy to Install
How Friction Drive Motors Work
Friction drive motors are a unique type of e-bike motor that uses friction to move the bike. A small motor is attached to the frame, and a roller presses against the tire. When the motor turns, the roller spins the tire, pushing the bike forward. This simple design makes friction drive motors easy to install and maintain.
Pros and Cons of Friction Drive Motors
Pro: Simplicity and Easy Installation
The main benefit of friction drive motors is their simplicity. They are easy to install and can be put on most bikes, making them a good choice for people who want to turn a regular bike into an e-bike. The installation process doesn’t need any complex changes to the frame or drivetrain, which saves time and money.
Con: Lower Efficiency and Limited Range
One downside of friction drive motors is that they are less efficient than other types of e-bike motors. Some energy is lost because of the friction between the roller and the tire, which can reduce the overall range of the e-bike. Friction drive motors are best for short distances and may not be ideal for longer rides or commutes.
Specific Uses for Friction Drive Motors
Easy Retrofitting of Existing Bikes
Friction drive motors are a good option for people who want to convert their current bike into an e-bike. The simple installation process makes it easy to add electric assist to most bikes, without needing major modifications or expensive parts. This makes friction drive motors a cost-effective solution for those who want to try an e-bike without buying a brand-new one.
Temporary or Occasional Electric Assist
For riders who only need electric assist sometimes or for short trips, friction drive motors can be a convenient choice. They can be easily attached or removed as needed, providing flexibility for riders who don’t need constant electric support. This makes them suitable for people who want a boost when carrying heavy loads, going up short hills, or dealing with occasional headwinds.
Shaft Drive Motors: Low Maintenance and Clean Look
How Shaft Drive Motors Work
Shaft drive motors are a less common type of e-bike motor that uses a shaft instead of a chain to transfer power from the motor to the rear wheel. The motor is usually mounted near the bottom bracket, and a shaft connects it to a gearbox near the rear wheel. This design eliminates the need for an exposed chain, giving the e-bike a clean and streamlined look.
Advantages of Shaft Drive Motors
Low Maintenance Requirements
One of the main benefits of shaft drive motors is that they don’t need much maintenance. Since there is no exposed chain, there’s no need to worry about lubricating, adjusting, or replacing the chain. The enclosed shaft system is protected from dirt, debris, and weather, which reduces wear and tear on the parts. This makes shaft drive motors a good choice for riders who want an e-bike that’s easy to maintain.
Clean and Streamlined Look
Another advantage of shaft drive motors is their clean and streamlined appearance. Without an exposed chain, the e-bike looks sleek and modern. This can be appealing for riders who care about looks or want a bike that’s easy to keep clean. The lack of an exposed chain also means there’s no risk of clothing or loose items getting caught, which can be a plus for commuters or casual riders.
Disadvantages of Shaft Drive Motors
Limited Availability and Higher Cost
One possible problem with shaft drive motors is that you don’t see them as often in e-bikes. It might be harder to find a bike that has this technology because they are not as common as hub motors or mid-drive motors. Shaft drive motors may also cost more than other types of motors because their design and parts are more complex.
More Complex Repairs and Replacements
Getting a shaft drive motor fixed or replaced can be harder than getting other types of motors fixed or replaced. Because it is sealed and has special parts, it may need special tools and knowledge to be fixed, which can make it harder and cost more. Because shaft drive motors are not as popular, it may also be harder to find replacement parts.
Suitable Uses for Shaft Drive Motors
Custom-Built E-Bikes
Custom-built e-bikes often have shaft drive motors because the frame and other parts are made to fit this type of motor. This lets the shaft drive system fit in best, making sure that power is transferred smoothly and effectively. Builders may choose shaft drive motors because they look clean and don’t need much upkeep.
High-End Urban and Leisure E-Bikes
Shaft drive motors are sometimes found in high-end e-bikes for city and leisure use, where style, comfort, and low upkeep are important. These bikes are made for people who want to ride without a lot of trouble, like not having to clean or fix their chains all the time. The sleek lines and modern look of shaft drive motors can also go well with the design of these high-end e-bikes.
Find Your Ideal E-Bike Motor!
Getting the right electric bike motor is important if you want to enjoy your rides. Pick a motor that fits your needs based on where and how you plan to use your e-bike. Hub motors are easy to use and durable, but mid-drive motors are more stable and have more climbing power. Shaft drive motors don’t need much upkeep, while friction drive motors are simple to set up. You can choose the best motor for your e-biking experiences if you know the pros and cons of each type. Don’t be afraid to ask other e-bike riders or pros for help if you need it.
