Modern race cars generate a continuous stream of information. Temperature sensors monitor engines, brakes, tires, and fluids. Pressure sensors track oil, fuel, and boost conditions. Wheel-speed sensors, accelerometers, steering-angle sensors, and position sensors help engineers understand how the car behaves through every section of a circuit.
Before any of this information appears on a dashboard or engineering screen, the electrical signals must be collected, conditioned, converted, processed, and transmitted. Custom printed circuit boards provide the physical platform that connects these stages inside data loggers, sensor modules, control units, and telemetry devices.
Understanding this hardware layer helps explain how a physical event on the car becomes useful data for a driver or engineering team.
How a Sensor Reading Becomes Motorsport Data
A motorsport telemetry system usually contains several connected stages.
First, a sensor converts a physical condition into an electrical signal. A thermocouple may generate a small voltage related to temperature, while a pressure transducer may produce an analog voltage or current output. Other devices provide digital pulses or communicate through an established protocol.
The signal then enters an electronic module. Its circuit may filter electrical noise, protect the input, amplify a low-level signal, or convert an analog measurement into digital data. A microcontroller or processor reads the result, applies the required calculations, and packages the information for storage or transmission.
Depending on the system, data may be:
- Recorded locally in a data logger
- Displayed to the driver
- Sent through a vehicle network
- Transmitted to trackside equipment
- Downloaded after a session
- Combined with GPS, video, and lap-timing information
The exact architecture varies between vehicles and racing categories.
Why Motorsport Electronics Use Custom PCBs
Off-the-shelf development boards are useful during early experiments. A finished vehicle module usually needs a board designed around its specific connectors, enclosure, power source, sensors, and communication requirements.
Multiple Types of Sensor Inputs
A single data-acquisition module may need to accept several types of signals. Common examples include:
- Analog voltage inputs
- Resistive temperature sensors
- Thermocouples
- Frequency or pulse inputs
- Wheel-speed signals
- CAN messages
- Serial communication
- Digital switch inputs
Each input may require a different interface circuit. The PCB gives designers a controlled way to place protection devices, filters, amplifiers, analog-to-digital converters, processors, and communication transceivers around those inputs.
Limited Installation Space
Motorsport electronics often need to fit within a defined enclosure or installation area. Connector position, mounting-hole location, component height, cable direction, and service access can all influence the PCB layout.
A custom board can be shaped around the intended module instead of forcing the rest of the system to accommodate a general-purpose circuit board.
A Demanding Electrical Environment
Vehicle electronics operate near ignition systems, motors, solenoids, pumps, alternators, switching regulators, and long wiring harnesses. These elements can introduce electrical noise and transient conditions.
The design team may use filtering, grounding, shielding, input protection, and suitable communication circuits to manage the expected environment. The required approach depends on the vehicle, power architecture, signal type, cable routing, and applicable engineering requirements.
PCB Design Priorities for Telemetry Hardware
A reliable telemetry module begins with a design that reflects its operating conditions. Manufacturing can reproduce an approved design, while its electrical behavior remains dependent on the engineering decisions made before production.
Power Input and Regulation
Automotive supply voltage can vary during starting, charging, and load changes. A telemetry module needs an input stage designed for its specified voltage range and expected transient conditions.
The PCB layout should support the selected protection and regulation circuits with appropriate trace dimensions, grounding, component placement, and thermal management.
Signal Integrity and Measurement Accuracy
Some sensors produce low-level signals that can be affected by noise, voltage drops, grounding, and nearby switching circuits. Designers should follow the recommendations supplied by sensor, amplifier, converter, and processor manufacturers.
Analog and digital sections may need carefully planned return paths. Sensitive traces should be routed away from noisy switching nodes where practical. Decoupling capacitors should be placed close to their related device pins.
Communication Interfaces
CAN is widely used in automotive and motorsport electronics, while UART, LIN, Ethernet, and other interfaces may also appear depending on the application.
Communication layout should account for the selected transceiver, termination arrangement, connector pinout, routing, grounding, and protection. The circuit must match the actual network architecture rather than relying on assumptions taken from another system.
Mechanical Integration
PCB design also needs to reflect the enclosure and vehicle installation. Engineers should check:
- Mounting points
- Board outline
- Connector orientation
- Cable bend space
- Access to programming ports
- Test-point accessibility
- Clearance around tall components
- Expected vibration and mechanical loading
- Heat generated by nearby components

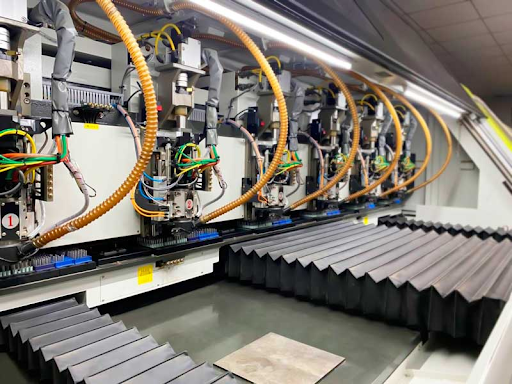

Turning a Telemetry Design Into a Manufactured PCB
Once the schematic and layout are approved, the design team prepares the fabrication package. A provider such as WonderfulPCB can support custom PCB Manufacturing based on the customer’s released production data and specifications.
A typical fabrication package may contain:
- Gerber or ODB++ data
- Drill files
- Board outline and routed cutouts
- Layer stack-up information
- Board thickness
- Copper requirements
- Base material requirements
- Surface finish
- Solder mask and silkscreen details
- Controlled impedance requirements, when applicable
- Fabrication notes
- Revision information
The exported files should be opened in an independent viewer before release. Engineers should verify the copper layers, drill locations, solder mask, silkscreen, board outline, slots, and internal layers.
Every document should refer to the same approved revision. Mismatched versions can create delays and increase the risk of building hardware from outdated information.
PCB Assembly Connects the Complete Hardware System
Fabrication creates the bare circuit board. Assembly adds the processors, converters, communication devices, protection components, connectors, and passive parts required for operation.
WonderfulPCB’s PCB Assembly can combine PCB fabrication, component sourcing, and board assembly within one production workflow. The customer still needs to provide complete and accurate design data so that the assembled board matches the approved telemetry hardware.
What the Assembler Needs
The assembly package should include:
- Bill of materials
- Manufacturer Part Numbers
- Pick-and-place file
- Assembly drawing
- Polarity information
- DNP markings
- Approved alternative parts
- Special installation instructions
- Firmware and programming instructions, when required
- Testing requirements, when agreed upon
Descriptions such as “10 kΩ resistor” may be insufficient when the design depends on a particular tolerance, package, temperature coefficient, voltage rating, or power rating. Complete part data makes sourcing and technical review more accurate.
Component Orientation Matters
ICs, diodes, LEDs, polarized capacitors, and connectors require unambiguous orientation information. Pin 1 and polarity markings should be visible in the assembly drawing and, where space permits, on the PCB silkscreen.
Connectors deserve special attention because a reversed or incorrectly mapped connector can affect the entire module and any external sensor connected to it.
Testing Before the Module Reaches the Car
A telemetry board should be tested in a controlled environment before vehicle installation. The final procedure depends on the circuit and intended function.
A board-level test sequence may include:
- Inspecting component placement and solder joints
- Checking for unexpected resistance between power and ground
- Applying power through a current-limited supply
- Measuring internal supply rails
- Loading the approved firmware
- Simulating sensor inputs
- Checking analog-to-digital conversion results
- Verifying CAN or other communication interfaces
- Testing local data storage
- Confirming connector pin assignments
- Recording the hardware and firmware revision
Sensor simulation is particularly useful. Known voltages, resistances, frequencies, or messages can be applied to an input so engineers can compare the reported value with the expected result.
Board-level testing verifies the electronic module under defined conditions. Vehicle-level validation remains necessary because wiring, grounding, installation, temperature, vibration, software integration, and other systems can affect real-world performance.
Start With a Prototype and Refine the Design
A prototype batch gives engineers an opportunity to evaluate the physical and electrical design before committing to a larger production run.
Testing should confirm:
- Fit within the enclosure
- Mounting and connector access
- Compatibility with the wiring harness
- Sensor-reading accuracy
- Communication stability
- Firmware programming
- Thermal behavior
- Data-recording performance
- Integration with the wider vehicle system
Any change should be recorded through a controlled revision process. The schematic, layout, BOM, placement data, firmware, and test procedure should remain synchronized as the design evolves.
What to Send a PCB Manufacturing Partner
Before releasing a motorsport telemetry PCB, prepare a complete package containing:
- Final fabrication files
- Drill and mechanical data
- Material and stack-up requirements
- Complete BOM
- Pick-and-place data
- Assembly drawing
- Approved substitutions
- Programming requirements
- Test specifications
- Revision history
Clear documentation helps the manufacturing partner understand what to build and gives the engineering team a consistent reference for inspection and validation.
FAQ
What does a telemetry PCB do in a race car?
A telemetry PCB can connect sensors to signal-conditioning circuits, converters, processors, storage devices, and communication interfaces. Its exact role depends on whether the board is used in a sensor module, data logger, dashboard, control unit, or telemetry transmitter.
Which sensors can connect to a motorsport data-acquisition system?
A system may collect data from temperature, pressure, wheel speed, position, acceleration, steering, suspension, and other sensors. Compatibility depends on the sensor’s output type and the input circuitry supported by the data-acquisition hardware.
Why are custom PCBs used in motorsport electronics?
Custom PCBs allow engineers to design around specific sensors, connectors, enclosures, communication protocols, power requirements, and installation constraints. They also support repeatable production after the prototype has been validated.
What files are needed to manufacture a telemetry circuit board?
PCB manufacturing generally requires fabrication data, drill files, a board outline, layer information, material specifications, and manufacturing notes. Assembly additionally requires a BOM, pick-and-place file, assembly drawing, and any programming or testing instructions.
Can WonderfulPCB manufacture and assemble custom telemetry PCBs?
WonderfulPCB provides custom PCB manufacturing and PCB assembly services based on customer-supplied design files and specifications. Motorsport-specific design requirements, system validation, regulatory obligations, and final vehicle integration remain the responsibility of the project’s qualified engineering team.
